Grain Spreaders
SA-93
Spread-All Special
*For 6" & 8" Auger
*Without Reversing Switch
*Capacity: Up to 3000 Bu./Hr
(Depending on grain and moisture)
*Powered: Oil Bath Gear Case
*Motor: 1/2 HP 115 V
*Weight: 85 lbs
*Bin Diameters 18 ft to 30 ft
*Vary The Spread by Tilting Pan
SA-94
E-2 Compact
*For 6" & 8" Auger
*With Reversing Switch
*Capacity: Up to 3000 Bu./ Hr
(Depending on grain and moisture)
*Powered: Oil Bath Gear Case
*Motor: 1/2 HP 115 V
*Weight: 85 lbs
*Bin Diameters 18 ft to 36 ft
*Reversible switch to change from narrow to wide spread
SA-95
E-2 High Speed
*For 6" & 8" Auger
*With Reversing Switch
*Capacity: Up to 3000 Bu./Hr
(Depending on grain and moisture)
*Powered: Oil Bath Gear Case
*Motor: 1/2 HP 115 V
*Weight: 85 lbs
*Bin Diameters: Over 42 ft
*Reversible switch to change from narrow to wide spread
SA-96
E-3 Compact
*For 10" auger
*Without Reversing Switch
*Capacity: 3000 to 5000 Bu./Hr.
(Depending on grain and moisture)
*Powered: oil bath gear case
*Motor: 1/2 HP 115V
*Weight: 85 lbs
*Bin diameters: 18 ft to 36 ft
*Vary the spread by tilting pan
SA-97
E-3 Compact
Our Most Popular Model!
*For 10" auger
*With reversing switch
*Capacity: 3000 to 5000 Bu./Hr.
*(Depending on grain and moisture)
*Powered: oil bath gear case
*Motor: 1/2 HP 115V
*Weight: 85 lbs
*Bin Diameters: 18 ft to 36 ft
*Reversible switch to change from narrow to wide spread
SA-97HS
E-3 High Speed
*For 10" Auger
*With Reversing Switch
*Capacity: 3000 to 5000 Bu./Hr
(Depending on grain and moisture)
*Powered: Oil Bath Gear Case
*Motor:1 HP 115 V
*Weight: 100 lbs
*Bin Diameters: Over 42 ft
*Reversible switch to change from narrow to wide spread
SA-103
E-6
*For 13" Auger
*With Reversing Switch
*Capcaity: 6000 to 9000 Bu./Hr
(Depending on the grain and moisture)
*Powered: Oil Bath Gear Case
*Motor: 1HP 115 V
*Weight:100 lbs
*Bin Diameters 18 ft to 36 ft
*Reversible switch to change from narrow to wide spread
SA-104HS
E-6 High Speed
*For 13" Auger
*With Reversing Switch
*Capacity: 6000 to 9000 Bu./Hr
(Depending on grain and moisture)
*Powered: Oil Bath Gear Case
*Motor:1 HP 115 V
*Weight: 100 lbs
*Bin Diameters: Over 42 ft
*Reversible switch to change spreading patterns
Note: 3 phase also available, Please specify voltage 230 V. or 460 V.
Note: We recommend a Reversible Spreader on bins Over 30".

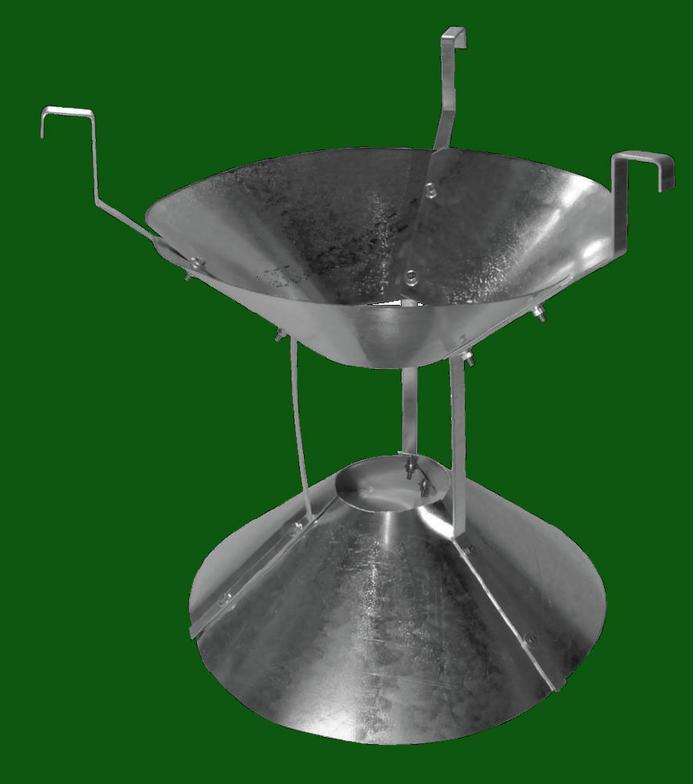

SA-98
Galvanized Gravity Spreader
*To help keep fines from center of small bins
*Handles 3000 bushels per hour.
*22 gauge galvanized sheet metal
*Light Weight 15#
(comes unassembled in box)

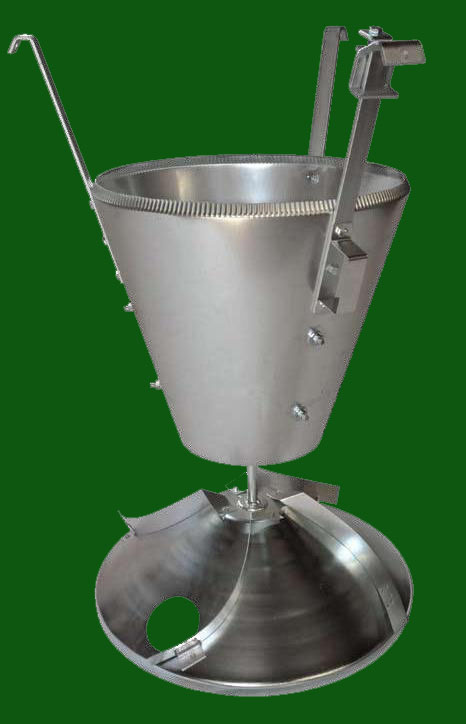

SA-105 & SA-106
Spinning Gravity Spreader
*Gravity Spreader designed to help keep fines out of center of smaller bins
*Grain goes through cone and hits inverted cone suspended by shaft that rotates when grain hits bottom cone.
*Has strong hanger straps (and a leveling strap). Spreader should be level in bin.
*Both models will spread up to a 30' bin.
* SA-105 handles up to 3000 to 5000 bushels per hour.
* SA-106 handles 6000 to 9000 bushels per hour.

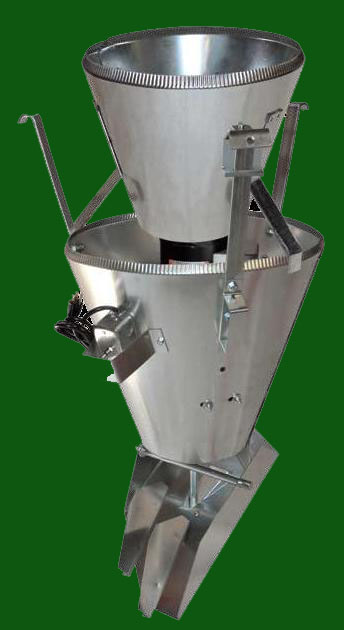

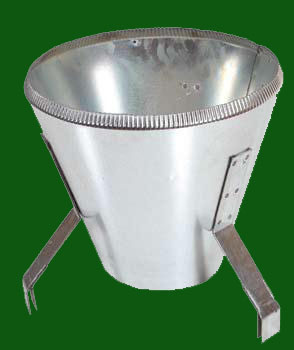

SA-32 A or B
Centering Hopper
*We find this device very valuable in centering the grain over an E-2, E-3, E-6 Grain Spreader.
1. To operate the spreader more effectively.
2. To center the grain properly over the grain spreader.
SA-32A for E-2 and E-3 Models
SA-32B for E-3 HS and E-6 Models
Brackets
SA-24
5" Hanger Strap Spacer Bracket
*4 of these brackets can be used to hang the Spread-All Spreader to fill a 36" and 38" opening.
SA-25
8" Hanger Strap Spacer Bracket
*4 of these brackets can be used to hang the Spread-All Spreader in a 40", 42", 48" fill opening.
SA-26
8" Hanger Strap Spacer Bracket
*8 of these brackets can be used to hang the Spread-All Spreader in a 60" fill opening.

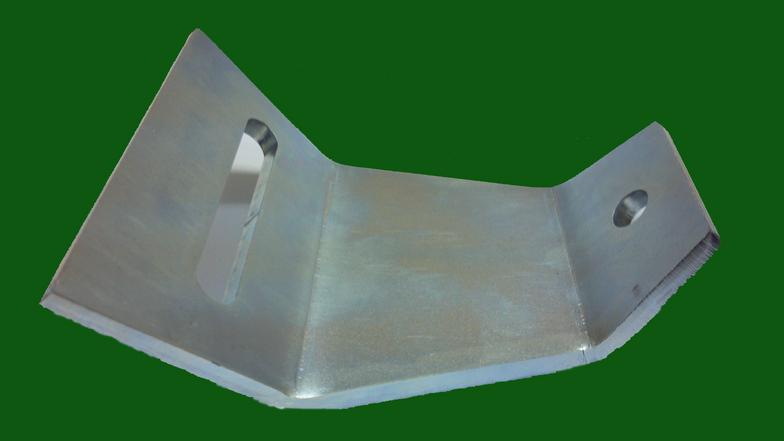

SA-30
Triangle Bracket
*Four of these 1/4" steel brackets can be used to hang the Spread-All spreader in a 30" fill opening.
Click on the link below to find the Grain Spreader manual!
The manual includes wiring diagrams, part lists, and instructions.
Click on the link below to find a Baldor Service Center near you!
Click on the PDF File to open the Motor Warranty Form for Baldor Motors.
SA-27
Adjustable Spacer Bracket
*These brackets will extend 20" to 60".
Eight brackets required per spreader.
Click on the Triangle Bracket pdf file to see how to properly use these brackets.
NEW MOTOR DESIGN - PATENT PENDING
Our new motor design-patent pending. This is designed to help with the flow of grain and wear on the motor. This will be in all powered spreaders effective January 2017!
E-6 REVERSIBLE HIGH SPEED GRAIN SPREADER
